Description

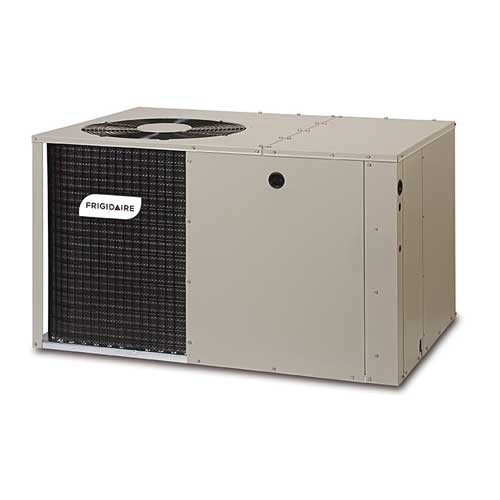

The Frigidaire Q95RD-060K is a high-efficiency, self-contained horizontal-discharge packaged heat pump designed primarily for mobile and manufactured homes. It delivers reliable year-round cooling and heating in a ready-to-install unit that meets current DOE and HUD requirements. Using environmentally preferred R-454B refrigerant, it combines solid performance, corrosion resistance, and service-friendly design for large mobile homes.
Key Features
- 5-ton capacity with single-stage scroll compressor for reliable, efficient operation
- 13.4 SEER2 / 10.6 EER2 cooling efficiency and 6.7 HSPF2 heating efficiency
- Energy-efficient ECM (electronically commutated) blower motor with 5 speeds
- All-aluminum evaporator and condenser coils optimized for heat transfer, durability, and reduced refrigerant volume
- Patented hot-gas defrost system for complete, worry-free defrost cycles
- High- and low-pressure switches to protect the compressor
- Factory-installed liquid-line filter drier
- Galvanized steel cabinet with polyester urethane coating (950-hour salt-spray rated) for excellent corrosion resistance
- Raised base pan for proper drainage, notched base rails for curb or stand mounting, and wire/hail guards
- Easy-access panels for compressor, controls, evaporator coil, and blower
- Removable top grille for fan-motor service
- Drain trap included for optimized drainage
- Optional field-installed electric heat kits (typically 5–20 kW) for supplemental heating
Benefits
- Provides consistent cooling (up to 55,500 BTU) and heating (up to 58,500 BTU) for large mobile/manufactured homes
- Lower operating costs through modern SEER2 efficiency and ECM blower
- Long-term durability in outdoor environments thanks to corrosion-resistant construction and protective features
- Quieter operation (approximately 73–75 dBA) and reliable performance with scroll compressor technology
- Simplified installation and servicing with horizontal configuration, round-duct connections, and front-access design
- Peace of mind from a 10-year limited warranty on parts and compressor (with online registration)
- Future-ready R-454B refrigerant that complies with current environmental and safety standards (A2L)
