Description

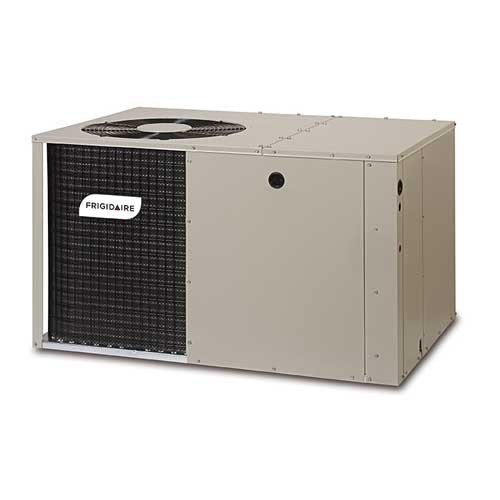

The Frigidaire Q95RD-030K is a high-efficiency, single-stage, self-contained horizontal packaged heat pump designed primarily for mobile homes, manufactured homes, and residential applications. The Frigidaire all-in-one outdoor unit combines heating and cooling in a compact package, eliminating the need for a separate indoor air handler. It uses eco-friendly R-454B refrigerant and delivers reliable year-round climate control with modern efficiency ratings that meet current DOE standards.
Key Features
- Scroll compressor for quiet, reliable performance and improved efficiency
- All-aluminum micro-channel coils for superior heat transfer, corrosion resistance (including formicary corrosion), reduced refrigerant charge, and longer service life
- High-efficiency 5-speed fixed-torque ECM blower motor for consistent airflow and quieter operation
- Patented hot gas defrost system for complete, worry-free defrost cycles
- High- and low-pressure switches for compressor protection
- Factory-installed liquid line filter-drier
- Galvanized steel cabinet with polyester urethane finish rated for 950-hour salt spray resistance
- Wire guard with epoxy coating and plastic mesh hail guard
- Raised base pan for proper drainage
- Easy front/side access to controls, compressor, evaporator coil, and blower for simplified service
- Five-minute restart time delay to protect the compressor
- Optional field-installed electric heat kits (5–15 kW or up to 20 kW depending on configuration)
- 0″ clearance to combustibles on the duct side for tight installations
- Compact footprint for easier transport and installation on slabs or roofs
Benefits
- Efficient year-round heating and cooling in a single outdoor unit, ideal for space-constrained mobile and manufactured homes
- Lower environmental impact with R-454B (A2L) refrigerant compared to older R-410A systems
- Energy savings through 13.4 SEER2 efficiency while maintaining strong heating performance (6.7 HSPF2)
- Durable construction resists corrosion and outdoor elements for long service life
- Quiet operation and reliable performance with industry-proven scroll technology and ECM blower
- Simplified installation and maintenance with accessible components and round duct connections
- Backed by a 10-year limited warranty on parts and compressor (with online registration; terms may vary by brand/retailer)
| Specification | Detail |
|---|---|
| Model | Q95RD-030K |
| Cooling Capacity | 28,600 BTU/h (2.5 Tons) |
| Heating Capacity | 29,400 BTU/h |
| SEER2 | 13.4 |
| EER2 | 10.6 |
| HSPF2 | 6.7 |
| Refrigerant | R-454B |
| Voltage / Phase / Frequency | 208/230 V, 1-Phase, 60 Hz |
| Operating Voltage Range | 187–253 V |
| Minimum Circuit Ampacity (MCA) | 20.5 A |
| Maximum Overcurrent Protection (MOP) | 30 A |
| Compressor Type | Scroll (Single Stage) |
| Blower Motor | ECM, 5-speed fixed torque |
| Configuration | Horizontal discharge |
| Sound Rating (Cooling/Heating) | Approx. 74.2 / 75.5 dBA |
| Supply Duct Opening | 12″ diameter |
| Return Duct Opening | 14″ diameter |
| Dimensions (L × W × H) | 49″ × 35″ × 30.2″ |
| Shipping Weight | Approx. 281–288 lbs |
| AHRI Certificate | Available (e.g., 216031832) |
