Description

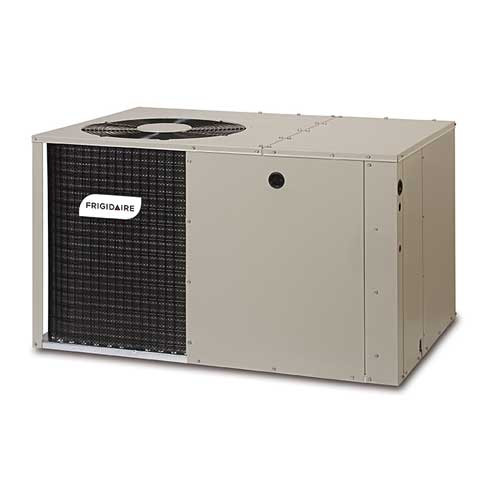

The P95RD-042K is a high-efficiency, self-contained single-package air conditioner designed primarily for mobile homes, manufactured homes, and similar residential applications. It delivers reliable cooling in a compact, all-in-one outdoor unit that installs on a slab, roof curb, or metal stand—ideal when indoor space is limited or a traditional split system is impractical.
Key Features
- 3.5-ton nominal cooling capacity (40,000 BTU/h)
- 13.4 SEER2 / 10.6 EER2 efficiency
- Eco-friendly R-454B refrigerant (A2L, low-GWP, 2023 DOE-compliant)
- Scroll compressor for quiet, reliable performance
- Fixed-torque 5-speed ECM blower motor (brushless DC) for consistent airflow and energy savings
- All-aluminum micro-channel coils for optimized heat transfer, corrosion resistance, and reduced refrigerant charge
- PSC condenser fan motor (permanently lubricated)
- Factory-installed liquid-line filter-drier
- High- and low-pressure switches
- Galvanized steel cabinet with polyester urethane coating (950-hour salt spray rating)
- Raised base pan for drainage, epoxy-coated wire guard + plastic mesh hail guard
- Horizontal discharge with round duct connections
- 0″ clearance to combustibles on the duct side
- Front service access panels + removable top grille for easy maintenance
- Optional field-installed electric heat kits (5–20 kW)
Benefits
- All-in-one design simplifies installation and reduces indoor equipment needs—perfect for manufactured and mobile homes.
- High-efficiency ECM blower and scroll compressor lower energy bills while providing quiet operation (approx. 76 dB).
- Corrosion-resistant construction and all-aluminum coils extend service life in outdoor environments.
- Compact footprint fits tight lot lines and eases transport/installation.
- Optional electric heat kits add versatile year-round comfort without a separate furnace.
- Easy service access reduces maintenance time and cost.
- Meets current DOE and UL A2L safety standards for future-proof performance.
