Description

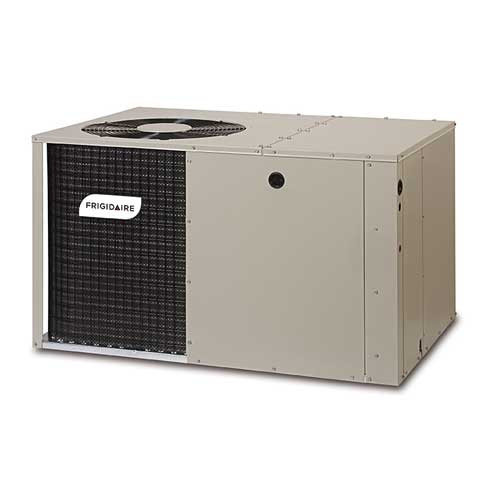

2 Ton Frigidaire 13.4 SEER2 R-454B Single Stage Air Conditioner Packaged Unit P95RD-024K
The P95RD-024K is a compact, self-contained 2-ton cooling-only packaged air conditioner designed primarily for mobile and manufactured homes. It delivers reliable, efficient cooling in a single outdoor unit that combines compressor, coils, blower, and controls—ideal when indoor space is limited or a traditional split system isn’t practical. Sold under brands including Revolv (Nordyne), Style Crest, Frigidaire, Intertherm, and Miller.
Dimensions
- Length (Depth): 49 in
- Width: 35 in
- Height: 22.2 in
- Approximate Shipping Weight: 197–212 lbs
- Duct Connections: 12 in round supply and return
- Clearance: 0 in to combustibles on the duct side
Key Features
- 13.4 SEER2 / 10.6 EER2 efficiency
- R-454B (A2L) low-GWP refrigerant — 2023 DOE-compliant
- Scroll compressor for reliable, efficient performance
- All-aluminum micro-channel evaporator and condenser coils (optimized heat transfer, corrosion-resistant, reduced refrigerant charge)
- 5-speed fixed-torque ECM blower motor (high-static capable, quieter operation)
- Permanently lubricated PSC condenser fan motor
- Factory-installed liquid-line filter drier
- High-pressure switch protection
- Galvanized steel cabinet with polyester-urethane coating (950-hour salt-spray rated)
- Wire guard with epoxy coating + plastic mesh hail guard
- Raised base pan for proper drainage
- Front service access to controls, compressor, evaporator coil, and blower
- Removable top grille for fan motor service
- Notched base rails for slab, roof curb, or stand mounting
- Optional field-installed electric heat kits (5–15 kW typically; up to 20 kW on larger models)
Benefits
- All-in-one design simplifies installation and reduces indoor space requirements
- Compact footprint fits tight mobile-home lot lines and is easier to transport
- Energy-efficient operation helps lower cooling costs
- Quiet performance (75 dB sound rating)
- Durable outdoor construction resists corrosion and weather
- Easy service access lowers maintenance time and cost
- Eco-friendly R-454B refrigerant meets current environmental standards
- Compatible with optional electric heat for year-round comfort in milder climates
Specifications
| Specification | Value |
|---|---|
| Cooling Capacity | 23,600 BTU/h |
| SEER2 | 13.4 |
| EER2 | 10.6 |
| Voltage | 208/230 V, 60 Hz, 1-Phase |
| Operating Voltage Range | 187–253 V |
| Minimum Circuit Ampacity | 16.0 A |
| Maximum Overcurrent Protection | 20 A |
| Refrigerant | R-454B |
| Compressor Type | Scroll |
| Blower Motor | 1/2 HP ECM (5-speed) |
| Condenser Fan Motor | 1/5 HP PSC |
| Sound Rating | 75 dB |
| Configuration | Horizontal discharge |
| Drain Connection | 3/4 in NPT |
Compatibility
- Designed specifically for mobile and manufactured homes (use of non-mobile-home equipment can cause improper operation)
- Installs on slab, roof curb, or metal stands
- Round duct connections (12 in supply/return)
- Optional electric heater kits (HK1 series: 5, 8, 10, 15 kW common)
- Compatible with standard residential thermostats
- ETL / ETLc listed
- Suitable for replacement of older packaged units of similar size and configuration
Note: Must be installed by a licensed HVAC contractor in accordance with manufacturer instructions and local codes. Professional installation is required to maintain warranty.
